Evaluation Board schematic
The Evaluation Board schematics describe the electrical design of the board and its integration with the System on Module (SoM).
Use the schematics when evaluating the SoM, understanding signal routing on the Evaluation Board, or designing a custom carrier board.

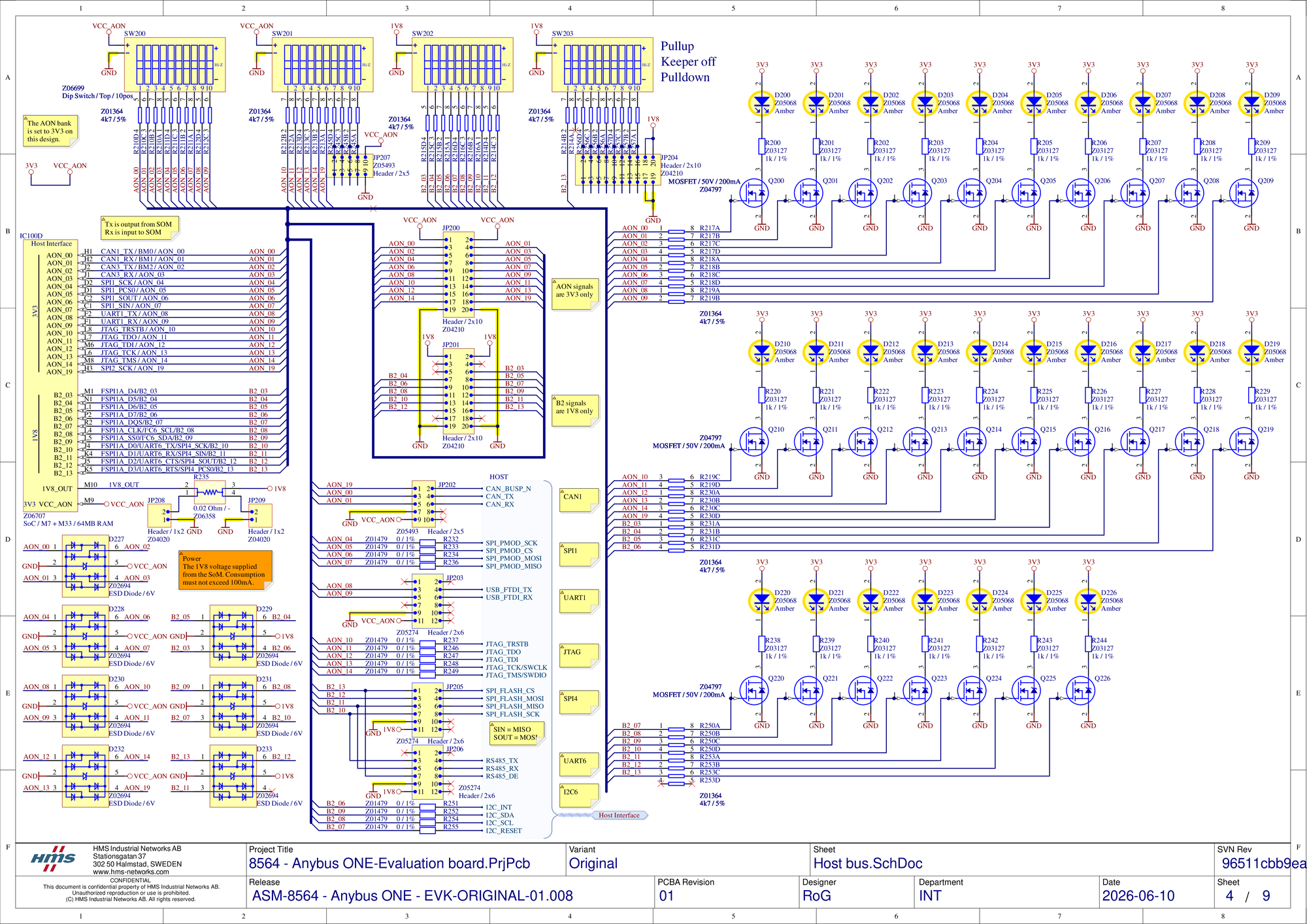

Figure 42. Evaluation Board schematics - Host bus
Download schematics: Anybus ONE Evaluation Board (EVB) Schematic.
Note
The Evaluation Board design is not a complete reference design. It is an early example and not a finalized solution.
For a full reference design, contact HMS for support.
